Product Details

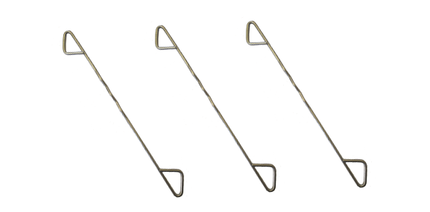

SAMAC Type 2 General Purpose Cavity Wall Ties are designed to provide a secure and reliable connection between the inner and outer leaves of masonry cavity walls. Widely used across UK housing and low-rise commercial construction, these ties ensure effective load distribution and structural stability in standard cavity wall applications up to 15 metres in height.

Manufactured from high-quality stainless steel, SAMAC Type 2 wall ties offer excellent corrosion resistance and long-term durability within cavity environments. Installed into horizontal mortar joints as brickwork progresses, they form a strong mechanical bond while incorporating a central drip feature to prevent moisture transfer across the cavity. Available in a range of lengths (typically 200mm–300mm+), they are suitable for common cavity widths and are compliant with BS EN 845-1 standards.

Key Features

• Type 2 classification for general purpose cavity wall construction
• Manufactured from stainless steel for corrosion resistance
• Suitable for buildings up to approx. 15m in height
• Designed for standard cavity widths (typically 50–125mm+)
• Integral drip feature to prevent moisture crossing the cavity
• Installed within mortar joints for secure bonding
• Supplied in bulk packs (commonly 250 per box)

Benefits

• Ensures structural integrity between masonry leaves
• Provides long-term durability in cavity environments
• Helps prevent damp transfer across the cavity
• Complies with UK building regulations and BS EN standards
• Quick and efficient installation for bricklayers
• Cost-effective solution for residential and low-rise projects
